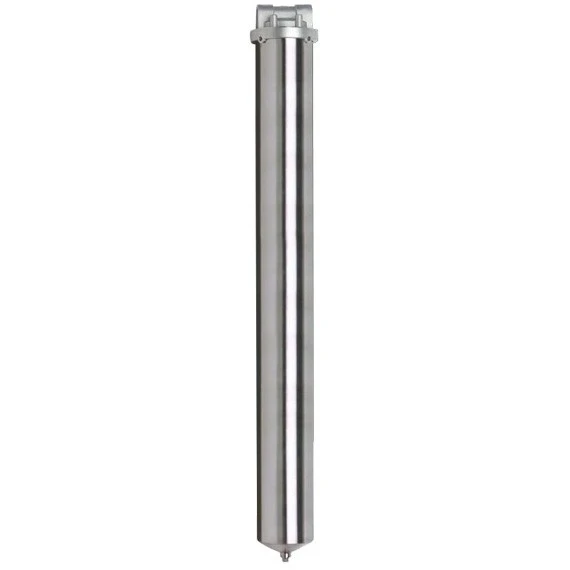

All of our configurable single cartridge filter housings feature a heavy-duty cast head with mounting bracket, dual closure seal and inline port design. Customizable options include inlet/outlet size and end configuration. With multiple cartridge housing lengths available as well, configure the filter housing to the required specifications for your application here!
Key benefits

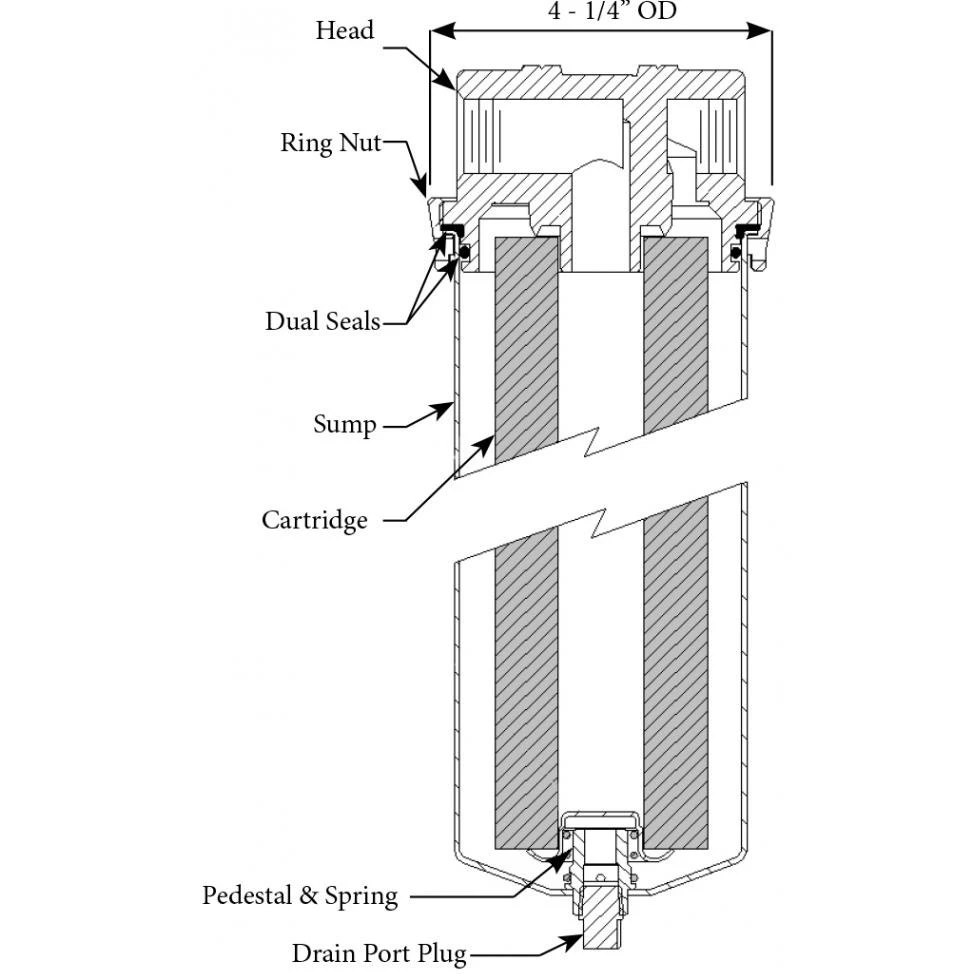

- DOE design with spring loaded bottom seat cup
- Dual closure seal (EPDM standard)
- Ring nut allows for easy change out
- 316 SS allows for superior corrosion resistance
- 300 PSI pressure rating
- Inline port design
- Drain port allows for complete evacuation prior to change out
- Multiple Inlet/Outlet options available
- Accepts cartridges 30″ in length up to 3″ OD in DOE, 222/Flat or 226/Flat
Material:
Stainless steel 316 (SS316) exhibits excellent corrosion resistance. It has an oxidation resistance of 1600°F for intermittent service and 1700°F during continuous service. SS316 is often found in pipes and coils, as well as food preparation and laboratory equipment. The Cary Company has tense strength 316 stainless steel drums, which are able to resist against breaking when under strain and corrosion.
Disclaimer:
This information has been provided as a general guide. It is the customer’s responsibility to select the proper container for product and application compatibility.
Additional Information
| Material | Stainless Steel (316) |
|---|---|
| Bag/Cartridge Qty | Single |
| Housing Size | 30″ |
| Pipe Size | Configurable |
| Outlet Style | Configurable |
| Pressure Rating | 300 PSI |
| Seal | EPDM |
| Basket Style | Cartridge |
| Pallet Pack | 20 ea. |
| Weight | 60# |
| Country of Manufacture | United States |
| Note: | Expert Help – Need help with a unique specification or more information on pricing? Speak to one of our Liquid Filtration Experts to find the best solution for your application! — Call 630.629.6600 or email today! |
