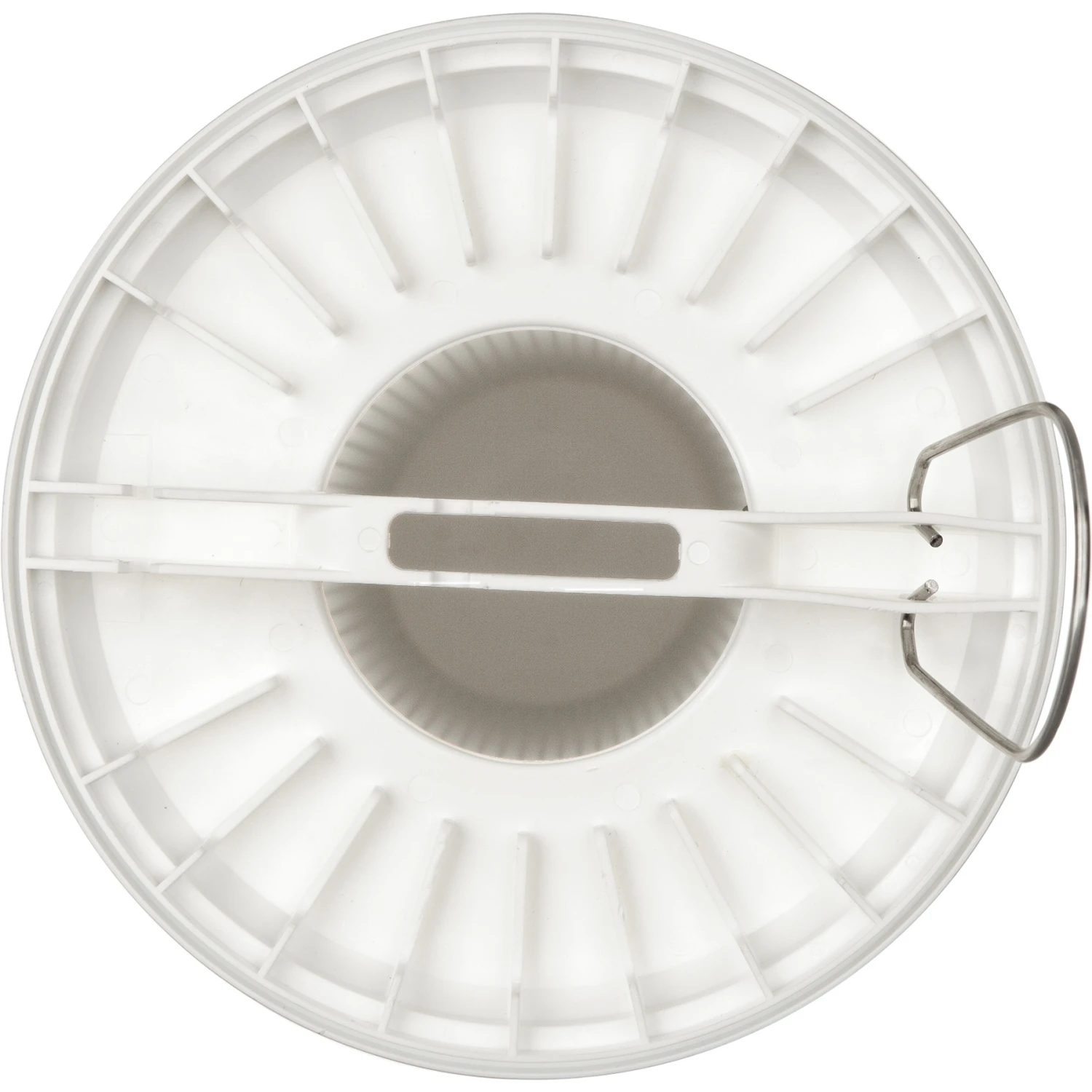

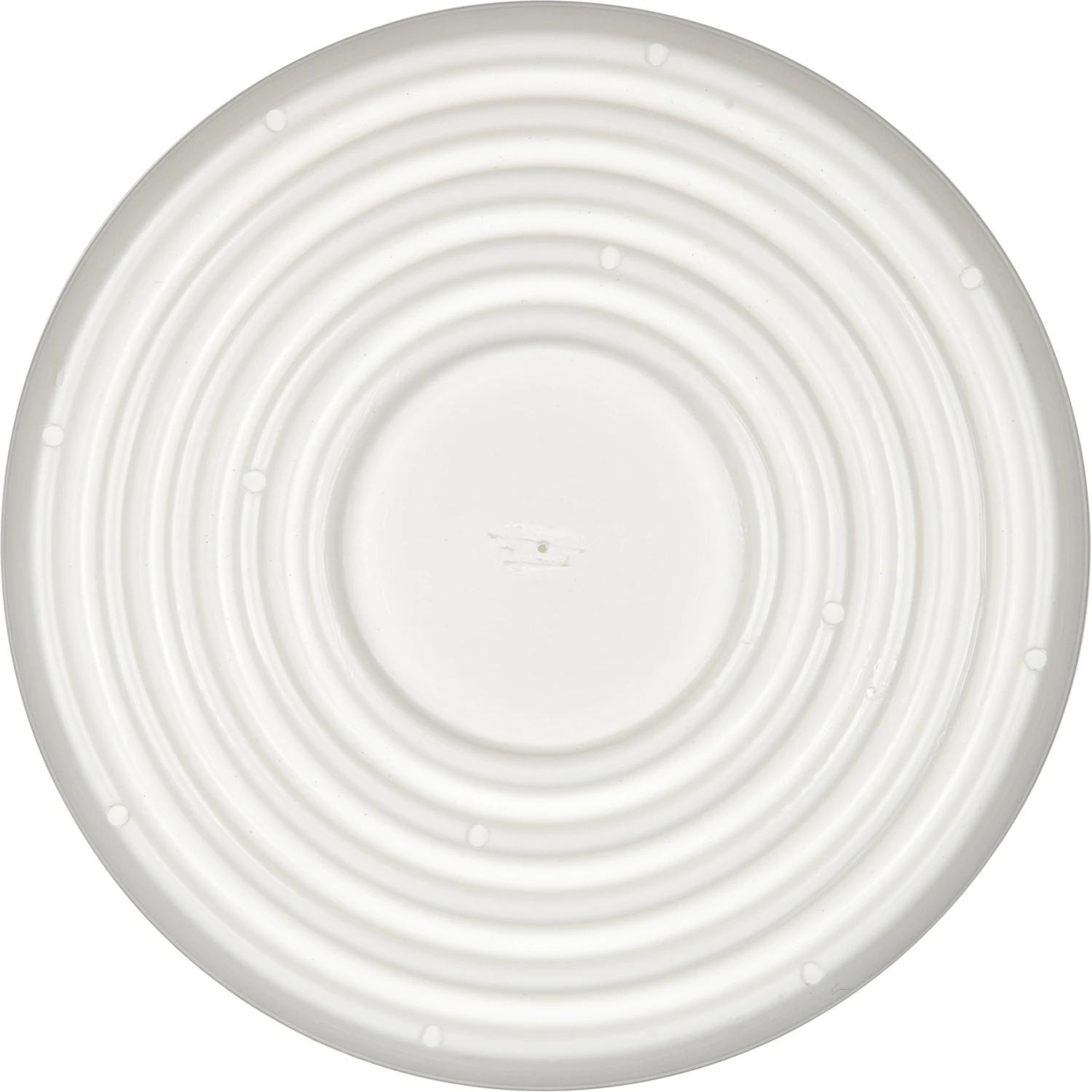

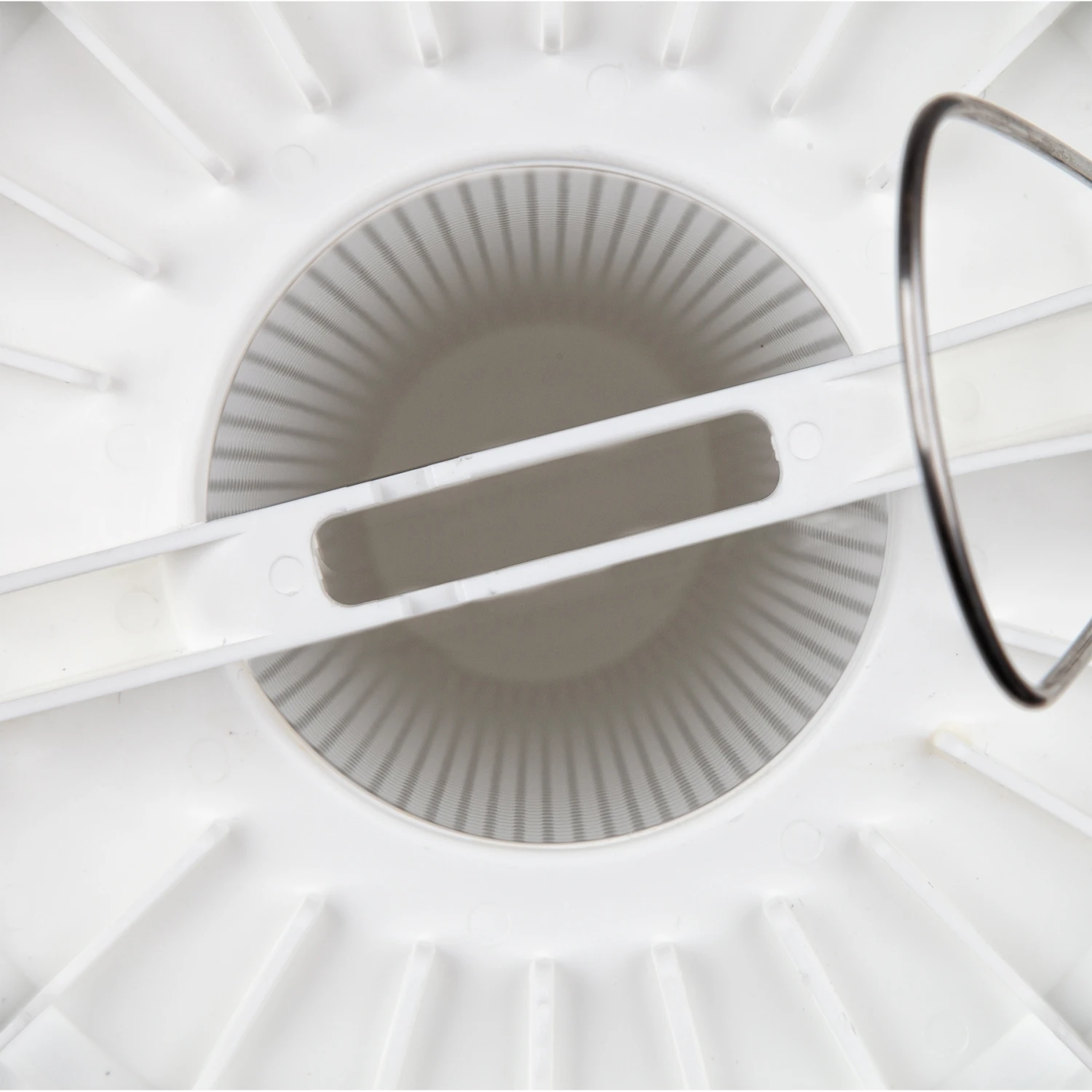

5.0 Micron Size #1 High Flow Pleated Polypropylene Liquid Filter Cartridge (HFBPP5.0A1BPB)
Original price was: $246.68.$97.99Current price is: $97.99.
- Free Shipping, No Compromise on Quality
- Buy with confidence, backed by quality.
- Buy with Confidence, Get Quality
- Shop with Confidence, Pay Safely
These customizable high flow pleated filter cartridges come in either polypropylene or microglass filtration media and polypropylene or polyester support media. All materials of construction comply with FDA regulations for food and beverage contact, and all polypropylene components meet the specifications for biological safety per USP Class VI-121° C for plastics. Maximum operating conditions are a maximum differential pressure of 50 PSID and maximum temperature of 160° F | 71° C. Select your required specifications with both absolute and nominal retention available as well as multiple end cap style configurations.
Key benefits
- Fits into most standard bag filter housings
- High efficiencies, flow rates, loading capacities at low initial pressure drops
- Inside to outside flow design
- Maximum differential pressure of 50 PSID
- Maximum operating temperature of 160° F | 71° C
- Broad chemical compatibility
- Available with polypropylene (PP) or microglass filtration media
- Configurable end cap style
- Absolute or nominal retention
- Proudly Made in the USA
Typical Applications: Process Water, Food & Beverage, Cosmetics, Produced Water, Waste Water, Deionized Water, Fine Chemicals, Reverse Osmosis Membrane Pre-Filtration, Amines, etc.
Material:
Polypropylene (PP) is a tough plastic that has excellent chemical resistance. PP is translucent in its natural state but can have a glossy finish when produced with color. Some examples of common products made with PP are dairy and medication containers. Polypropylene is suitable for hot fill applications of up to 165°F and is therefore great for autoclaving. It is not recommended for cold or sub-freezing temperatures. The Cary Company has an assortment of polypropylene plastics available for purchase, such as plastic caps and jars, which have a higher tolerance for chemical products. Discover if Polypropylene is appropriate for hot fill application by learning more about What Is Hot Fill Packaging and how it applies to Polypropylene containers.Disclaimer:
This information has been provided as a general guide. It is the customer’s responsibility to select the proper container for product and application compatibility.
Additional Information
| Material | PP |
|---|---|
| Size | 1 (7.06″ x 16.5″) |
| Micron Rating | 5 Micron |
| Case Dimensions | 9″ L x 9″ W x 25″ H |
| Pallet Pack | 48 ea. |
| Pallet Weight | 240 lbs. |
| Pallet Dimensions | 40″ x 48″ x 81″ |
| FDA Compliant | Yes |
| Weight | 5 lbs. |
| Country of Manufacture | United States |
| Note: | Complies with US 21 CFR; and EU Directives 2002/72/EC, 1935/2004, and/or 10/2011. |
