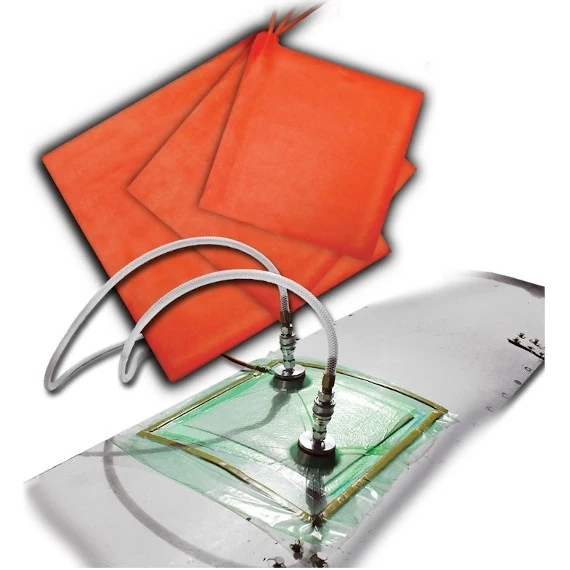

BriskHeat® 16″ X 16″ Silicone Rubber Composite Curing Heating Blanket, 120v, 1280w

19BY43 is a silicone rubber composite curing heating blanket that is ideal for composite repair and fabrication. Heating blanket’s 16″ x 16″ (406mm x 406mm) size provides a smooth surface against the section to be repaired. Used in curing applications for aviation, automotive, marine industries and more, the highly flexible heating blanket can be contoured to most surfaces which avoids having to remove damaged section from assembly for repair. Providing up to 1280 watts of power, the 120-volt heating blanket quickly and efficiently delivers up to 450° F (232° C) of non-stress producing heat. Good for leading and trailing edges, curing blanket incorporates a NEMA L15-30 plug that is compatible with maker’s ARC3® or MiniPRO^TM hot bonders, as well as users’ existing equipment.

Key benefits:

• Exceptional durability and excellent heat uniformity
• Highly flexible 1/4″ bend radius
• Multi-stranded heating element maximizes heat distribution
• Heating element laminated between two layers of non-reinforced silicone rubber offers smooth surface against repair
• Moisture, chemical and radiation resistant
• Power density of 5w/in² (0.008w/mm²)
• Dielectric strength of more than 2000 volts
• Features a 6′ (1.8m) power cord
• Ingress Protection Rating: IP54
• Strain relief built through entire edge of blanket for increased durability
• Two year warranty
• Made in the USA

Applications:

• Composite curing
• Composite repair
• Prepregs
• Wet lay-ups
• Resin infusion
• Metal bonding
• Composite fabrication
• Engineered solutions
