BriskHeat® 5000 Ml Lower Hemispherical Heating Mantle, 120v

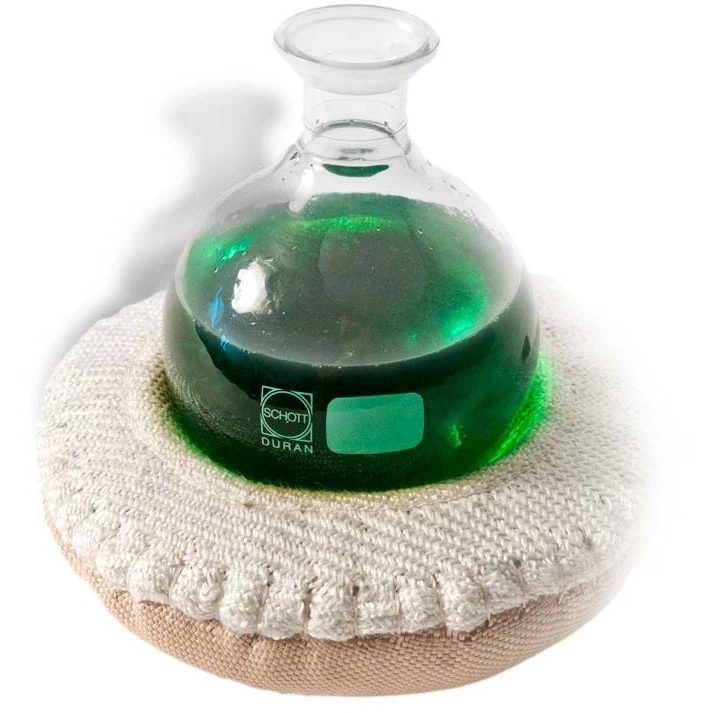

19BS49 is a 120v lower hemispherical heating mantle designed to offer uniform heat distribution for 5000 ml round-bottom flasks. This low-watt density heating mantle is an ideal alternative to traditional Bunsen burners. The heated element offers a knitted heating element capable of temperatures up to 842° F (450° C). Great for use with basket ring stands. Temperature controller required.

About Lower Hemisphere Heating Mantles
The Cary Company’s heating mantles offer uniform heat distribution for round-bottom flasks. Lower hemispherical heating mantles are an excellent alternative to heating methods with an open flame such as a Bunsen burner.

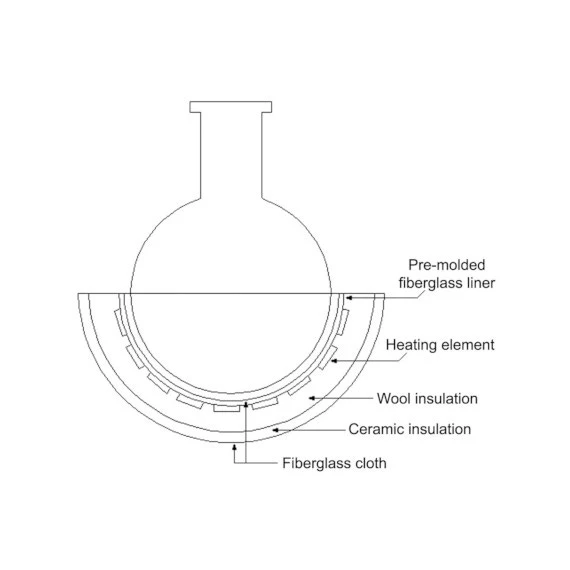

These heating mantles feature a uniform, low-watt density knitted and braided heating element capable of temperatures up to 842° F (450° C). The multi-stranded resistance wire offers increased durability and flexibility. Lower hemispherical heating mantles are ideal for use with a basket ring stand.

The 120 VAC model includes a 3″ (76mm) lead wire with NEMA L1-15R connector and a 4 foot (1.2m) power cord with NEMA 1-15 plug. The 240VAC model includes a 3″ (76mm) lead wire with no plug. Temperature controller is required and not included.

Key benefits

• Molded to fit round-bottom flasks
• Ideal for use with basket ring stand
• Low watt density
• Multi-stranded resistance wire for durability and flexibility
• Capable of temperatures up to 842° F | 450° C
