BriskHeat® 6″ X 24″ T3 Hazardous-Area Rated Silicone Rubber Heating Blanket, 240V, 360W
Original price was: $360.24.$99.99Current price is: $99.99.
- Free Shipping, No Compromise on Quality
- Buy with confidence, backed by quality.
- Buy with Confidence, Get Quality
- Shop with Confidence, Pay Safely

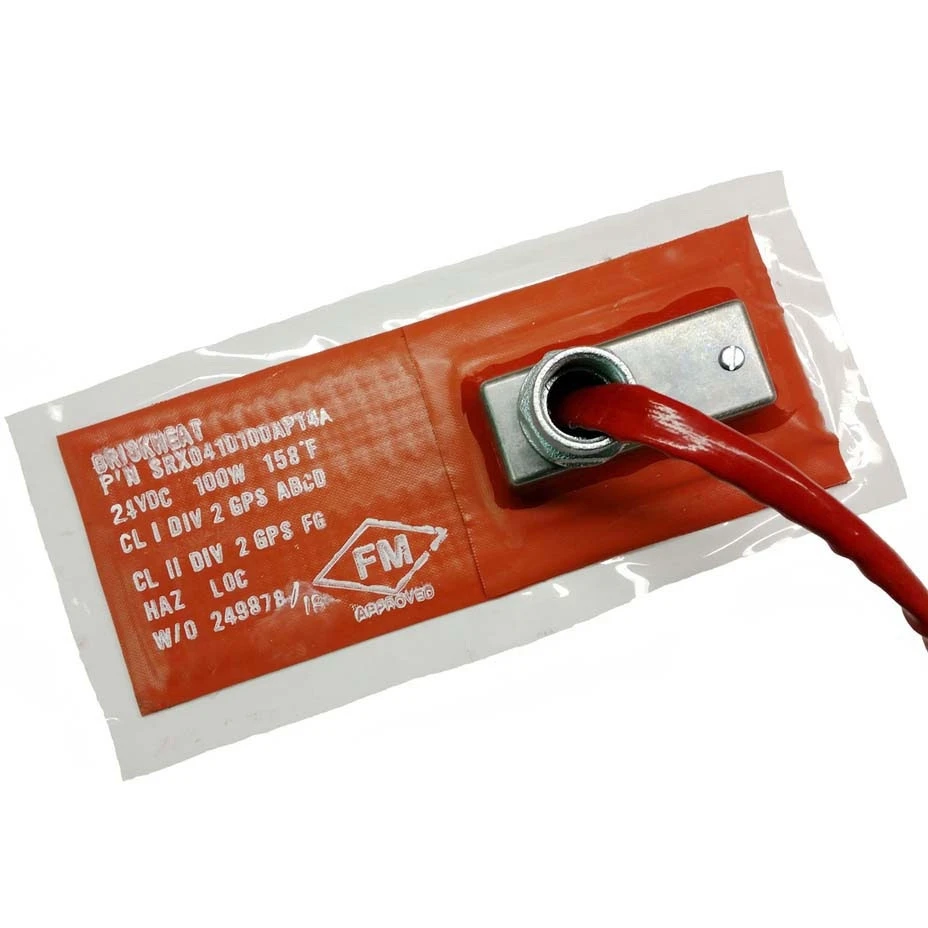

Hazardous-Area Rated Silicone Rubber Heating Blanket
This hazardous-area approved silicone rubber heating blanket is designed for electrical surface heating in hazardous locations. The heating blanket’s low profile design is ideal for heating surfaces like tanks, hoppers, conveyors, silos and more.
Key benefits:
- Moisture, chemical and radiation resistant
- Heavy duty, extra thick silicone rubber provides exceptional durability and longevity
- Patented grounded heating element meets NEC 427.23 for user safety

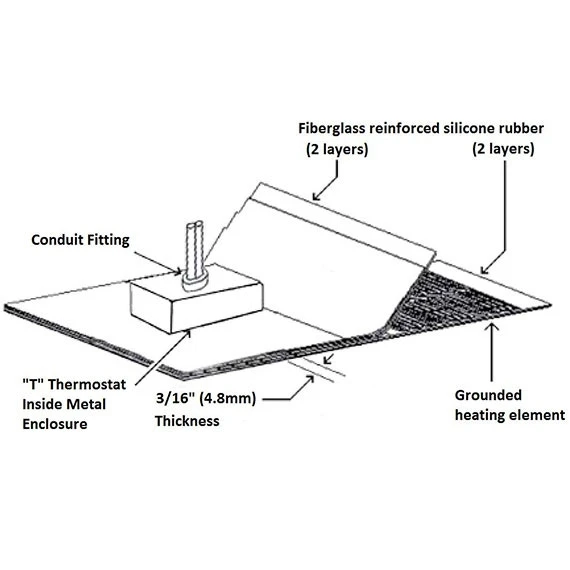

- Heating element is laminated between four layers of heavy duty fiberglass reinforced silicone rubber; two layers of 23mil and two layers of 25mil fiberglass reinforced silicone rubber
- Built-in high-limit thermostat designed to keep blanket below NEC article 500 T-Rating
- T3 Rated high-limit thermostat to 292° F (145° C)
- Approved for: Class I Division 2 Groups A, B, C, and D, and Class II Division 2 Groups F and G
- Proudly Made in the USA
Specifications:
- Power density: 2.5 W/in2 (0.004 W/mm2)
- Minimum exposure temperature: -60° F (-51° C)
- Maximum exposure temperature: 400& deg; F (204° C)
- Dielectric strength: Over 2000 volts
- Nominal silicone density: 26oz/yd2 (881g/m2) per layer
- Electrical power leads: 12″ (305mm) standard length with bare wire leads
- Voltage options: single phase 120, 240VAC
- Temperature controller required
- Female 3/4″-14 NPSM connection fitting
Disclaimer:
This information has been provided as a general guide. It is the customer’s responsibility to select the proper container for product and application compatibility.
Additional Information
| Material | Silicone Rubber |
|---|---|
| Temperature Reading | Fahrenheit (°F) |
| Voltage | 240v |
| Wattage | 360w |
| CSA Approved | No |
| Size | 6″ x 24″ |
| Dimensions | 24″ L x 6″ W x 0.1875″ H |
| Weight | 3 lbs. |
| Case Dimensions | 24″ x 24″ x 12″ |
| Country of Manufacture | United States |
| Manufacturer | BriskHeat |
| Model | SRX06243602T3 |
| Note: | A temperature controller is required for safe operation of this product. |
