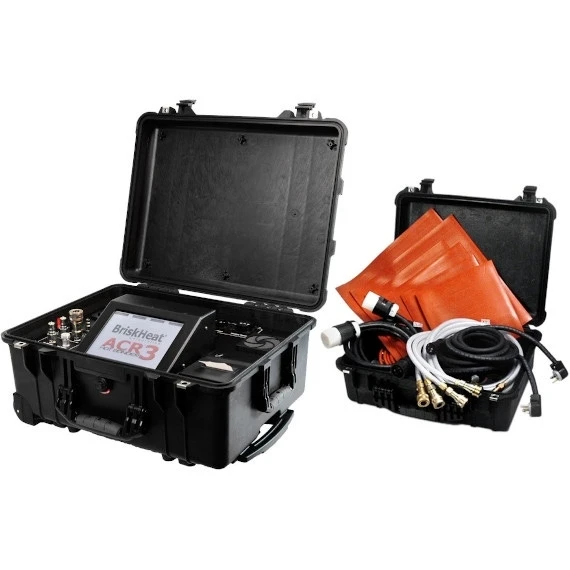

BriskHeat® Composite Curing Hot Bonder Kit W/Composite Curing Heating Blankets, Single Zone, 120v

19BZ41 is a 120-volt single-zone hot bonder kit that controls localized heat and vacuum sources for a variety of composite manufacturing and repair tasks. Portable bonder kit includes three composite curing heating blankets to provide on-site composite and metal bond curing for equipment in the aviation, marine, automotive and construction industries. Bonder unit features an 8.4″ (213mm) full-color touch screen with simple three-step programming and easy-to-follow menu that enables user to store up to 30 programs. Built-in USB port allows data transfer to spreadsheet and word processor programs for follow-up analysis. Bonding unit is for use in dry environments. System can be used for a variety of manufacturing and composite repair applications including debulk and cure resins, prepregs, adhesives, fibers and more.

Key benefits:

• Temperature controller cures up to 1400° F (760° C)
• Operating temperature range: 41° F to 104° F (5° C to 40° C)
• Employs 10 thermocouple sensor inputs per heating zone
• Incorporates a built-in electric vacuum pump and vacuum venturi for each zone
• Offers 30 Amp output per heat zone
• 8.4″ full-color touch screen operation and keyboard interface
• Secure system provides multiple levels of password protection
• Retains history of prior 10 cures
• Input ground fault interrupter breaker protected
• Customizable post-cure analysis allows user to program data logging intervals from 1- to 99-minute increments
• Multiple language support including English, German, Russian and Mandarin
• Built-in USB port
• Made in the USA

Kit contents include:

• One 10″ x 10″ (254mm x 254mm) composite curing blanket per zone
• One 12″ x 12″ (305mm x 305mm) composite curing blanket per zone
• One 16″ x 16″ (406mm x 406mm) composite curing blanket per zone
• Hot bonder unit
• 10′ (3m) vacuum hoses (2 per zone)
• Bonders feature a NEMA L15-30 receptacle
• 10′ (3m) input power cord (1 per zone)
• 5′ (1.5m) heater output power cord (1 per zone)
• USB flash disk
• J-Type thermocouples (10 per zone)
• Standard connector adapters for thermocouple receptacles (10 per zone)
• Vacuum bag feed-throughs (2 per zone)
• Extra printer ribbon and paper (1 per zone)
• DVD Training Video
