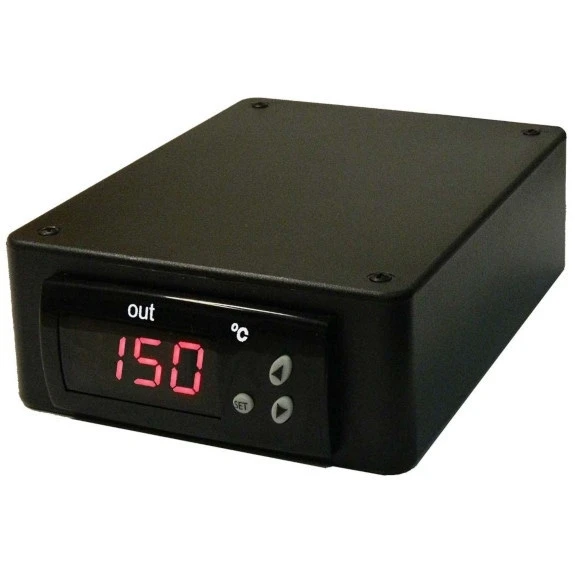

BriskHeat® SDC Benchtop Digital (°C) Temperature Controller, 120v, J-Type Sensor

19B616 is a BriskHeat® SDC benchtop temperature controller with an on/off switch, digital Celsius display and J-type sensor. This temperature controller has a temperature control range from 32° F to 999° F and 98 VAC – 132 VAC power input. Benchtop temperature controllers are ideal for general-purpose, indoor temperature control applications. With a compact, plug-and-play design, SDC temperature controllers are an easy-to-use, versatile and affordable temperature control solution compatible with a wide range of heaters and applications.

About BriskHeat® SDC Benchtop Digital Temperature Controllers
BriskHeat® SDC benchtop digital temperature controllers are affordable and compact controllers for a wide range of general-purpose heating applications. Ideal for applications requiring automatic control, these digital controllers are easy to use and programmable with a self-contained, plug-and-play design.

SDC temperature controllers feature password protection for additional security and a sensor break operation option. These controllers have an audible alarm that can be programmed for high or low range. Models come with either a Fahrenheit or Celsius display. The Fahrenheit models offer a temperature control range from 32° F to 999° F and the Celsius models have a 0° C to 700° C. Accuracy is +/- 1% full span.

Each benchtop digital temperature controller comes with a factory installed sensor input. Thermocouple options include a Type-J or Type-K sensor. These benchtop temperature controllers are ideal for indoor use and has an operating range of 32° F to 158° F and a storage range of -4° F to 176° F. Relative humidity should be less than 80% in non-condensing temperatures.

Key benefits

• Compact size
• On/Off control
• Factory installed J-type or K-type thermocouple sensor
• Available in 120 VAC or 240 VAC power input
• Temperature control range: ° C Models – 0° C to 700° C | ° F Models – 32° F to 999° F
• Relay output rated for 10A at 120/240 VAC
• 5′ input power cord: 120 VAC – NEMA 5-15 plug | 240 VAC – NEMA 6-15 plug
• 5′ output power cord: 120 VAC – NEMA 5-15R receptacle | 240 VAC – NEMA 6-15R receptacle
• Upper & lower limits of the setpoint can be adjusted
• Exposure temperature: 32° F to 158° F, 80% humidity non-condensing
• Internal buzzer for alarm condition/error
