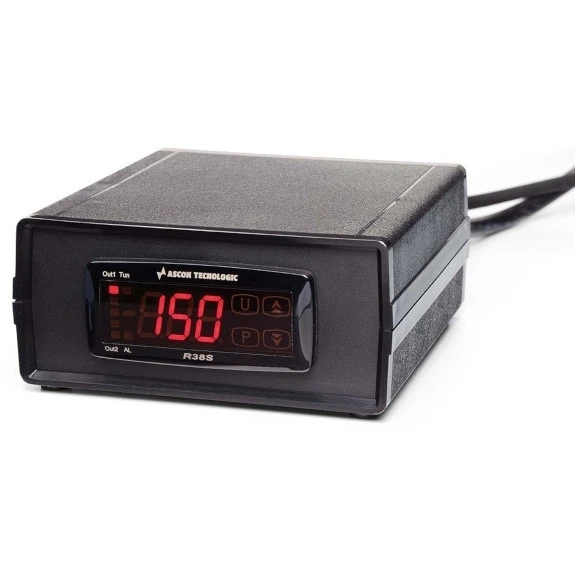

BriskHeat® SDCE Benchtop Digital Temperature Controller, 230v, J-Type Sensor, NEMA 6-15 Plug

19B629 is a BriskHeat® SDCE benchtop temperature controller with an on/off switch, programmable ° C or ° F display, J-Type sensor and 230V 3-prong NEMA 6-16 power plug. This unit has a temperature control range from -40° C to 370° C (-40° F to 698° F) and an operating voltage range from 100 VAC – 240 VAC. Benchtop temperature controllers are ideal for general-purpose, indoor temperature control applications. SDCE controllers offer touch-screen operation and a compact, plug-and-play design.

About BriskHeat® SDCE Benchtop Digital Temperature Controllers
BriskHeat® SDCE benchtop digital temperature controllers are affordable and compact controllers for a wide range of general-purpose heating applications. Ideal for applications requiring automatic control, these digital controllers are easy to use and programmable with a self-contained, plug-and-play design.

SDCE temperature controllers feature touch-screen operation and a display programmable in ° C or ° F. Accuracy is +- 0.5% span and +- 1 digit at 25° C ambient temperature. While the SDC temperature controllers have a built-in power cord, SDCE models have a modular power receptacle with power cord. 120V models have an operating voltage range from 100 VAC to 125 VAC and the 230v units have a range of 100 VAC to 240 VAC. The output power receptacle is a standard 3-prong receptacle (NEMA 5-15R) for the 120v models and a Neutrik receptacle with mating plug for the 230v models.

Each benchtop digital temperature controller comes with a factory-wired temperature sensor. Options include a J-type or J-type thermocouple sensor or resistance temperature detector (RTD/PT100) sensor. Temperature control range varies depending on the sensor. SDCE temperature controllers should not be used outdoors or with immersion heaters. Intended applications include use with heating tapes, beaker heaters, silicone heating blankets and other temperature control equipment.

Key benefits

• Compact size
• On/off control
• Touch screen operation
• Factory-wired sensor
• Relay output: rated for 8A at 120/240VAC
• Accuracy: +/- 0.5% span +/- 1 digit @25° C ambient environment
• Hysteresis: Adjustable from 1 to 999 (° C or ° F)
• Ambient temperature range: 0° C to 37° C (32° F to 100° F)
