Lab Mount Mixer, 1 HP Air Gear Drive, 12″ Shaft, 0-425 RPM (Series 2)

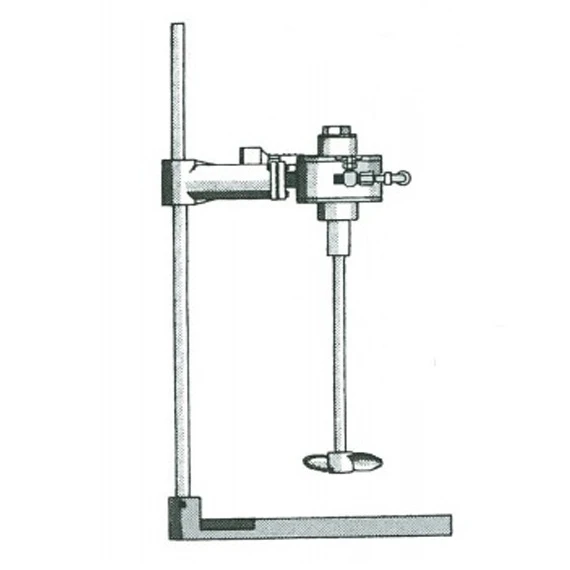

This is a 1 HP air gear drive lab agitator with a .75″ Dia. x 12″ L mixing shaft (Series 2). This mixer with a vertical lab stand features a 8″ blade and 0-425 mixer shaft RPM. The measured blade length is the blade’s diameter when extended during operation. Series 2 agitators are overhead mixers with an adjustable mounting bracket allowing for vertical positioning on the stand.

Gear drive mixers have relatively large mixing blades with the ability to mix thicker fluids compared to direct drive mixers. The gear drive creates additional torque as it incorporates a gear reducer. This lab mount mixer features a pneumatic/air motor that comes with a control valve and muffler. Air motors are variable speed so that you can control the rotation of the shaft. Air powered motors are also safe as they are explosion-proof and will not burn out or overheat for a customizable agitator for your mixing needs.

Great for smaller batch sizes, this overhead mixer is ideal for open top containers up to 5 gallons. With a 316 stainless steel construction on all wetted parts and the motor coated with USDA approved stainless steel paint, the pail or drum agitator is versatile for various mixing applications including paints, dyes, etc.

Key benefits:

• 0-425 mixer shaft RPM (variable speed)
• 1 HP
• Gear drive mixer
• 8″ mixing blade
• Lab stand included
• Adjustable mounting bracket for vertical positioning
• Explosion proof air motor
• Stainless steel coupling, shaft & mixing impellers
• Suitable across multiple industries
• Proudly Made in the USA
