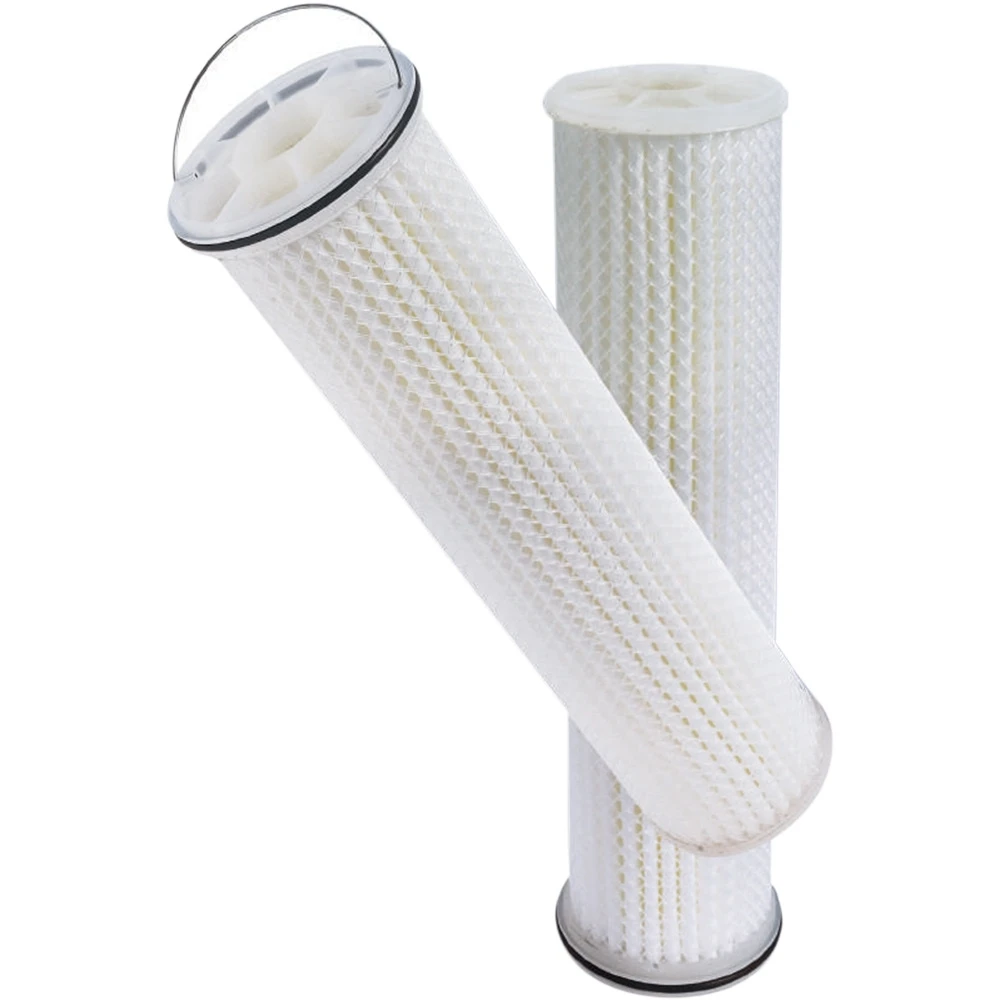

Nominal Depth Pleated Liquid Filter Cartridges (Configurable)

The Cary Company’s configurable nominal depth pleated liquid filter cartridges offer up to 10 times the filtration media surface area compared to standard filter bags due to the unique pleated design. The filter configuration is designed by pleating two layers of nominal felt to create multiple filter layers, maximizing dirt loading capacity and efficiency at filtration ranges from 1 to 200 microns. This depth cartridge filter is ideal for higher flow applications with a lower initial pressure drop.

This configurable filter cartridge fits most size #1 or size #2 filter bag housings and is available in micron ratings from 1 to 200 microns. Filtration media types include polypropylene and polyester meeting FDA regulations for food contact under CFR 21, Section 177.1520 and offering a wide range of chemical compatibility. All configurable nominal depth pleated liquid filter cartridges feature a silicone-free construction. Customize the ideal nominal depth pleated liquid filter cartridge for your application here!

Key benefits

• Provides 5 to 10 times the surface area of standard filter bags depending on micron rating
• Two layers of nominal felt create a pre-filter and final-filter layer for maximum dirt holding capacity
• Micron ratings from 1-200
• Available in polyester & polypropylene
• Broad chemical compatibility
• Thermally bonded end caps prevent particle bypass
• PP and PE meet FDA regulations for food contact under CFR 21, Section 177.1520
• Temperature ratings up to 200° F for polypropylene and 275° F for polyester
• Proudly Made in the USA
