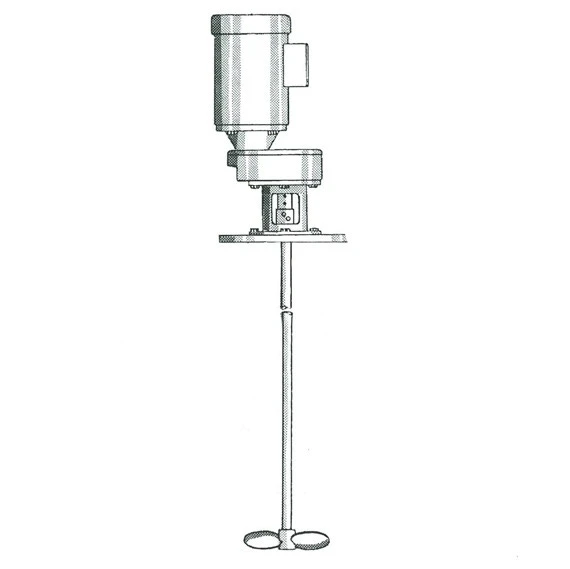

Tank Mixer, 1-1/2 HP TEFC Gear Drive, Flange Mount, 48″ Shaft, 425 RPM (Series 700)

This is a flange mount TEFC (totally enclosed, fan cooled) gear drive tank mixer with 1-1/2 HP, 48″ shaft and 425 RPM. This top entry mixer is designed to efficiently turn-over large batches of a variety of different liquids and solids. The gear driven motor incorporates a gear reducer, which lowers the shaft speed considerably while creating additional torque that allows for much larger mixing blades, which enables it to mix higher viscosity fluids and larger batch sizes. It also features a shaft support bearing that helps steady the mixing shaft when in use, reducing wear on the motor. The larger mixing blades make it a better choice for mixing large batches of higher viscosities liquids and materials. The measured blade length is the blade’s diameter when extended during operation.
The mixing blades fold down due to gravity and open when in use. The measured blade length is the blade’s diameter when extended during operation. The TEFC electric motor features an enclosure that prevents outside air from being freely circulated within the motor. The motor’s external fan blows outside air over the frame, helping to keep the motor cooled. This flange mount TEFC gear drive mixer is ideal for use in the paint, chemical, cosmetic, food industries and more!

Key benefits:

• 1-1/2 HP
• Flange mount bearings
• Blades fold down due to gravity and open in use
• TEFC motors features an enclosure that prevents outside air from being freely circulated within the motor
• Can be used with closed or even open top tanks with a support bridge, sold separately
• 5-year warranty offered
• Proudly Made in the USA
